Components of Suspension System and Problems of the Suspension System

-

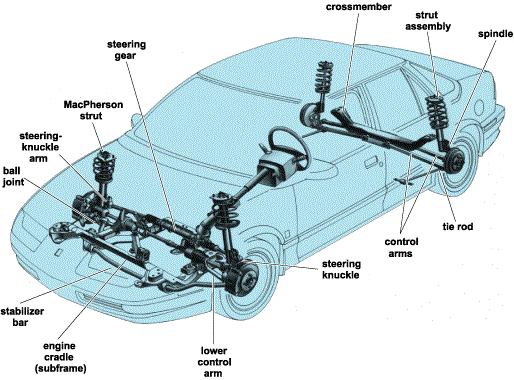

Components of Suspension System

1.     Control Arm: A movable lever that fastens the steering knuckle to the frame of the vehicle.

2.     Control Arm Bushing: This is a sleeve that allows the control arm to move up and down on the frame.

3.     Strut Rod: Prevents the control arm from swinging forward and backward.

4.     Ball Joints: A joint that allows the control arm and steering knuckle to move up and down and sideways as well

5.     Shock absorbers or Struts: prevents the suspension from bounce after spring compression and extension

6.     Stabilizer Bar: Limits body roll of the vehicle during cornering

7.     Spring: Supports the weight of the vehicle


Common Problems of the Suspension System

Shocks and Struts:




Ball joints:



Preventive Measures for Suspension System

  • The shocks and struts should be check frequently for leakages
  • Ball joints should be checked immediately in case the motion of the car is not right.
  • Make sure to lubricate the ball joints of your car frequently.
